When I emboss 40mm coin blanks with the MOPA laser on my xTool F2 Ultra, it creates a very fine dust. It settles on the workpiece and everywhere else. This jig is my attempt to deal with that. It holds a 40mm blank in place and lets you hook up your 2.5 inch dust or fume collection system.

Why I made it
I made this for health, safety, and to keep the area clean. The very fine particles will clog up the F2’s fan, so I filter to the outside.
If you use an air filter system instead, check the filters often.
How it works
The jig has two parts that work together:
- Base: Attaches to the F2 Ultra’s work surface with M3 screws. The blank fits tightly in the hole.
- Cover: Slips directly onto the base, creating a closed chamber to help pull out and contain the particles. Everything goes out the 2.5 inch dust collection port, keeping your work area clean.




Airflow adjustment
On the side opposite the 2.5 inch port there are two holes with threaded plugs (the green knobs in the photos) for flow control. I know some people have very powerful systems, so the plugs allow for some adjustment if you need it.


Cleaning

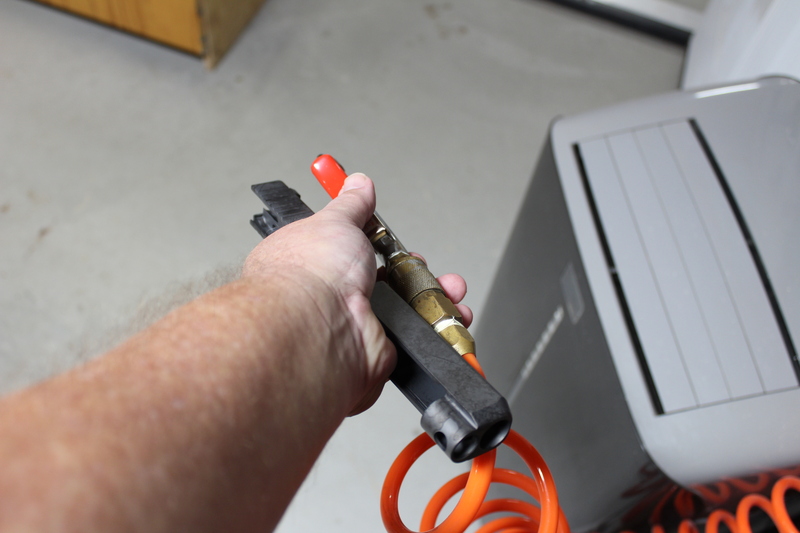

When I am done, I take it outside and blow it off with canned or compressed air.

Print settings
| Base | ASA (recommended) |
| Cover and plugs | PLA (works for me) |
| Layer height | 0.2 mm |
| Infill | 30-40% gyroid |
| Supports | Not needed |
| Nozzle | 0.4 mm |
| Screws | 4 each M3x8 (to mount the base) |
Download
The model is posted on all three sites:
